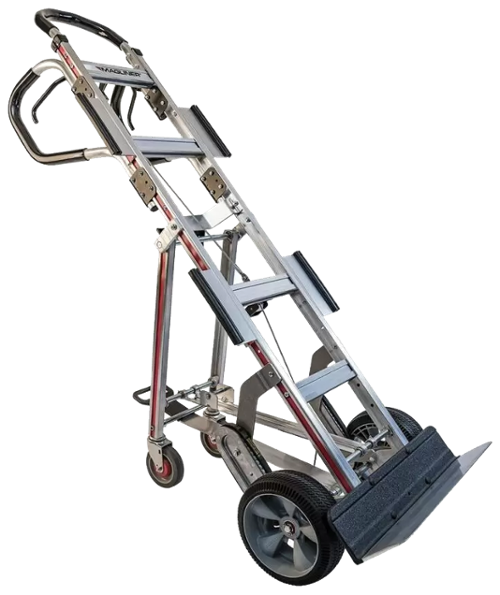

Magliner Appliance Hand Truck with 4th Wheel Attachment, Handle Release, 12 ft Strap

PART D411205
SUPPLIER ---
SUPPLIER PART # ---
Calculating price...
QUANTITY

About this item

  • Model: HDARB5CM1EC11RLR
  • Appliance Truck easily moves heavy or bulky items up and down stairs

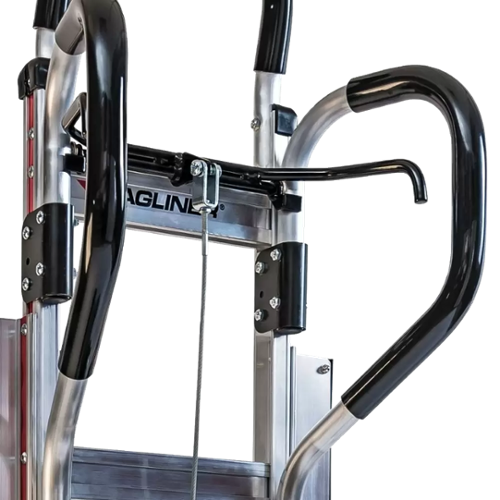

  • Shepherd handle with vinyl grip provides optimum control and comfort
  • Handle release lever allows user to quickly deploy and retract 4th wheel attachment
  • When in 4-wheel position, the frame is at a 45-degree angle
  • 600 lbs. capacity in 2-wheel mode; 800 lbs. capacity in 4-wheel mode

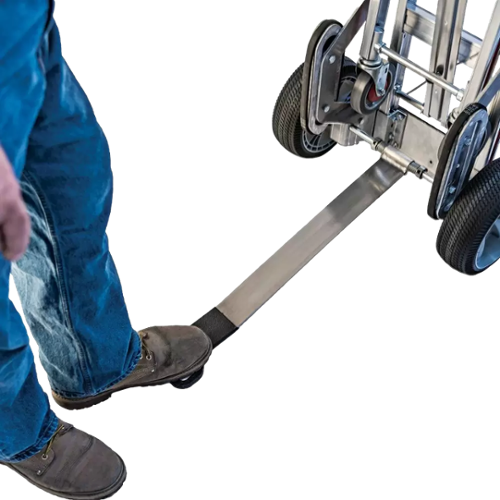

  • Break back bar prevents the truck from rolling when breaking back or uprighting loads

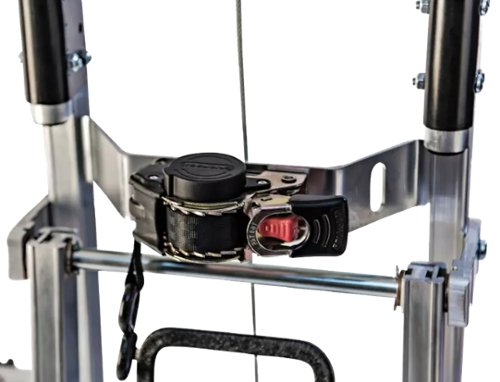

  • Heavy-duty 12' spring biased strap takes up slack at all times and can be cinched tightly with ratchet

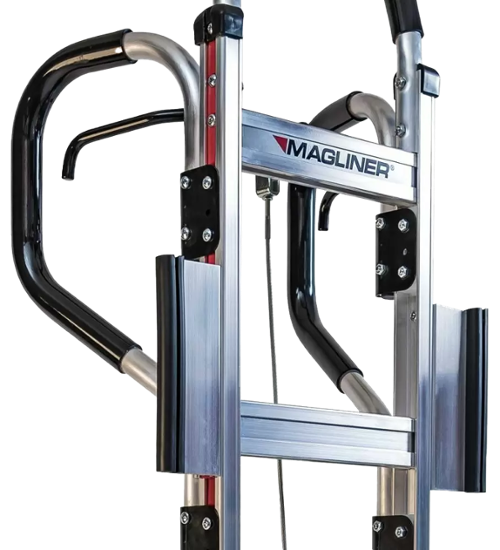

  • Wings support wide loads; rubber strip protects loads

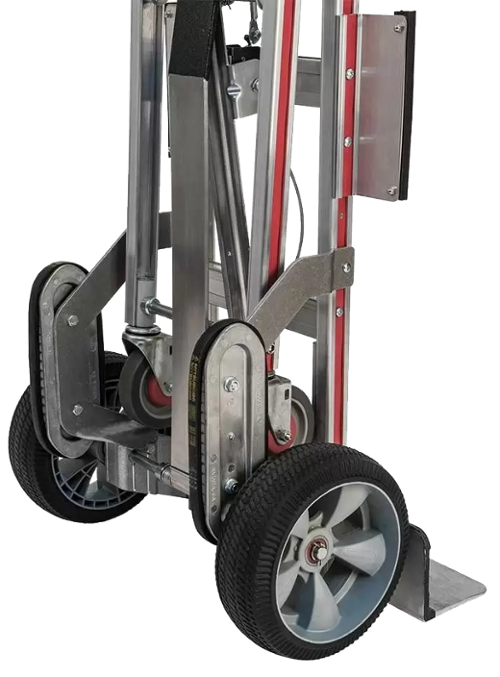

  • 10" interlocking microcellular foam wheels are non-marking and maintenance free
  • Appliance Truck ships fully assembled

Includes:

  • Frame: 59 Inch Tall Frame Straight Back w/ 2-1/8 inch Cross Braces
  • Handles: Dual Shepherd Handle with Vinyl Sleeve and Handle Release
  • Nose: Extruded Aluminum Nose Plate with Coating 23 inch x 5.32 inch
  • Wheels: 10 inch x 3.5 inch Interlocked Microcellular Foam Wheel
  • Stair Climber: Stair Crawler Kit - 308261
  • 4th Wheel Attachment: 4th Wheel Attachment for Appliance Truck
  • 4th Wheel Release: Handle Lever Release Option
  • Wings: Wings with Rubber Bumper - 8 inches x 3-1/2 inches
  • Break Back Bar: Break Back Bar
  • Self-Retracting Strap: Self-Retracting Strap - 1 inch x 12 feet

Specifications:

  • Capacity (2-wheel): 600 lb
  • Capacity (4-wheel): 800 lb
  • Height: 66-5/8"
  • Width: 22-7/8"
  • Depth: 15-7/8"
  • Nose Dimensions: 23" long x 5.32" deep
  • Weight: 72 lb
  • Wheels: 10 inch x 3.5 inch Interlocked Microcellular Foam
