Designed for the most demanding, high-volume applications, the SmartDate X65 delivers high resolution coding on flexible film packaging as fast as 455 packs per minute. Its fully intuitive 10.1” user interface makes daily operations easy and straightforward and provides the most valuable information you need to optimize and enhance your Overall Equipment Effectiveness (OEE) through MI Sigma reporting.
https://www.youtube.com/watch?v=FGkG3LCtkKI
The SmartDate X65 delivers high-quality coding on flexible film packaging up to 455 packs per minute
Enhanced SmartDate experience
Optimized tracking of OEE data. Coder can be configured to monitor your 5 most important production metrics directly from your home screen e.g., pack rate, throughput, availability.
Tutorials to facilitate daily activities. Animated help and ‘how to’ tutorials provide guidance on setup and daily maintenance procedures to ensure consistent print quality.
Profile configurator for error-free operation. Configurable profile password function (operator, supervisor and engineer) manages access and limits human-related errors.
High-performance printing
Supports your marketing campaigns. Promotional coding function allows for unique coding on each pack.
Eliminates faulty codes and protects your brand. In addition to its dead-dot detection system, the easy-to-install SmartDate Detect-Plus system checks and confirms the presence, position and quality of the code on every pack and directly on the user 10.1” interface.
Achieves superior printing speeds. Print speed can be set from 10 mm to 1800 mm per second allowing for 455 printed packs per minute at 300 dpi.
Unmatched and cost-effective reliability
Zero preventive maintenance. Robust direct ribbon drive and cassette design contain no wear parts.
All-in-one printer for enhanced flexibility. Both intermittent and continuous configurations with a 53 mm printhead are available on the same coder.
Up to 15%** more codes per roll. Large choice of ribbon rolls based on your packaging type and needs.

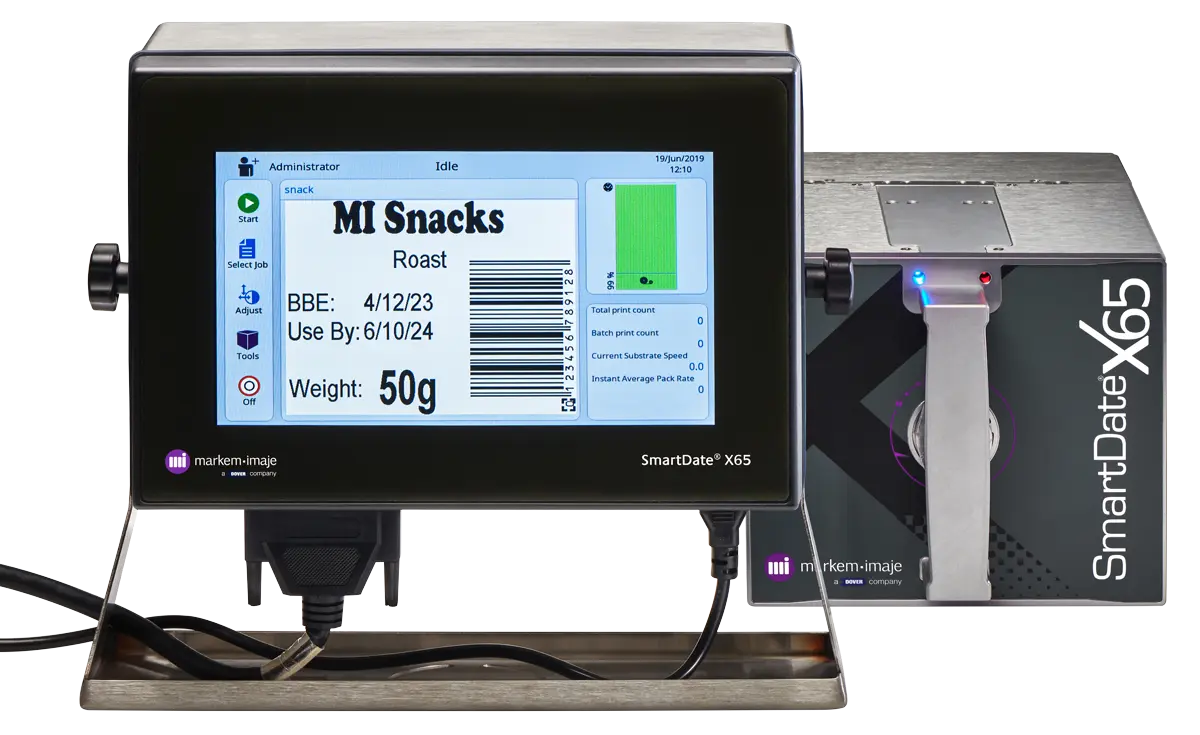

SmartDate X65
Ideal for multiple line coding including text, logos and barcodes
Print Features
Print speed
Intermittent Continuous Continuous
Up to 700 mm/s 10 to 1200 mm/s (combined) 10 to 1800 mm/s (shuttled)
Print speed
Intermittent Continuous Continuous
53 mm x 75 mm 53 mm x 750 mm (combined/application dependent) 53 mm x 100 mm (shuttled)
Print specifications
Full true type font support Printing of real-time clock Dates and auto updating best before dates Barcodes
Yes Yes Yes, Including non-Roman characters and symbols ITF, Code 39, Code 128, EAN 128, EAN 8, EAN 13, UPC A, UPC E, RSS linear, PDF 417, ID Matrix, QR and Composite RSS barcodes support.
