35 Packages/Minute
15" W x 21" L Seal Size
20" Max. Product Length
Overview

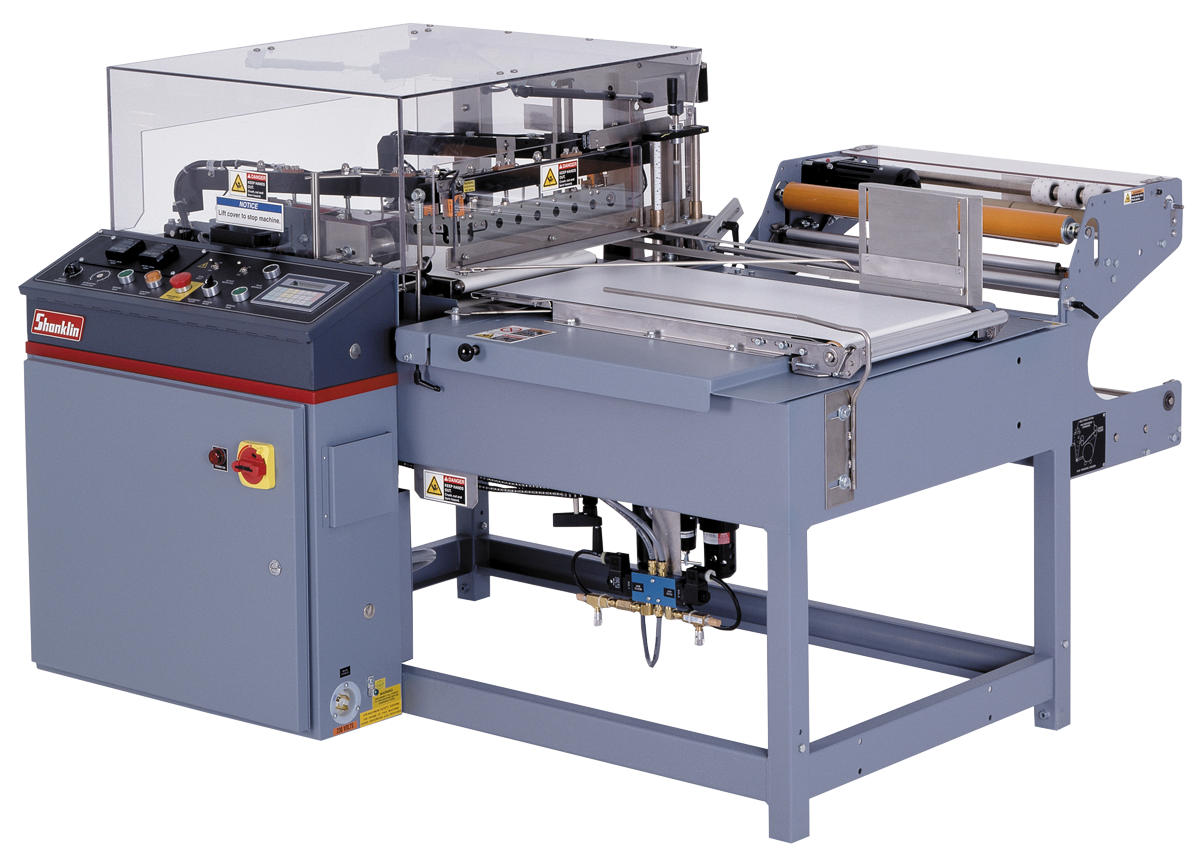

The Shanklin A-Series of compact, rugged, and versatile Automatic L-Sealers offers gentle product feed and straight line product flow that make them ideally suited for handling a wide variety of products. A-Series machines feature conveyor-fed automatic operation and are capable of processing up to 35 packages per minute, plus the L-Seal design provides great flexibility and quick product change. Each will accept randomly spaced product, fed either automatically or by hand.
Consistent Quality, Performance, and Reliability in a Flexible L-Seal Design
Technical Specifications
Packaging Speeds
Up to 35 packages per minute (standard)
Seal Size
15"W x 21"L
Max. Product Height
5 1/2"
Min. Product Length
4" Standard
1 1/2" with optional closing conveyor
Max. Product Length
20"
Max. Film Width (Folded)
24"
Max. Film Width (Flat)
44" with compact center folder
Conveyor Height
Adjustable 31 1/2" – 37 1/2"
