650 mm (25.6") Standard Loading Length
750 mm (29.6") Standard Discharge Length
Up to 450 mm (15.7") Film Roll Diameter
Overview

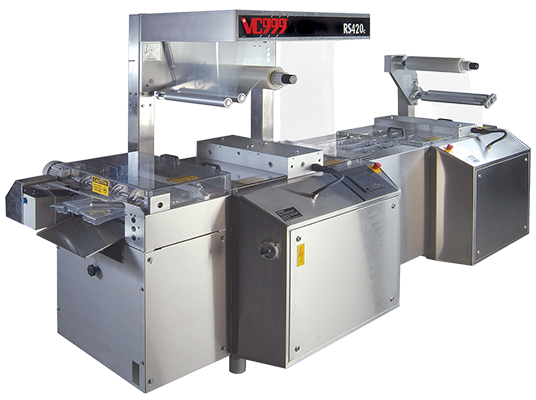

Perfect for small spaces. Born from one of our top-performing packaging machines, the RS Rollstock Machine, the new R-Series has a long pedigree of reliability. The R-Series design has numerous features that will enhance your productivity while reducing your labor and maintenance costs. With the ability to customize each unit, this machine can meet both your current and future packaging needs.
Options
Technical Specifications
Standard Machine Widths
285 / 320 / 355 / 420 mm (11.2" / 12.6" / 14" / 16.5")
Maximum Index Length
300 mm (11.8")
Loading Length
650 mm (25.6")
Standard Discharge Length
750 mm (29.6")
Standard Draw Depth
50 / 100/ 135 mm (2" / 4" / 5.3")
Film Roll Diameter
up to 400 mm / 15.7" (standard)
Roll Core
76 mm / 3" (standard) 152 mm / 6" available
Power Supply
220/440V – 3 ph – 50/60hz
Compressed Air
Min. 7 bar (103 psi) @ 850 l/min.
Tools and Expert Help
Have questions? Talk to an expert 1.800.363.0697
