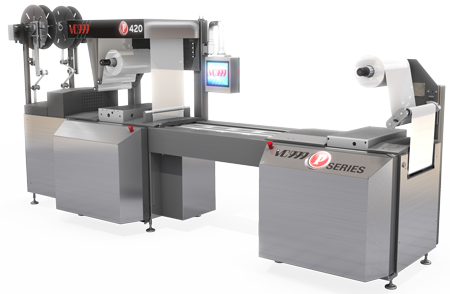

P420

Thermoformer

Get a Quote

Brochure

Lease

1000 – 5000 mm Standard Loading Lengths

750 – 3750 mm Standard Discharge Lengths

Up to 400 mm Film Roll Diameter

Overview

P stands for performance. The standard in packaging production, the P-Series is the next step up in cutting edge industrial design and premium packaging systems. The P-Series software is designed to navigate the HMI and control the machine with efficiency and ease.

https://youtu.be/gZO3Qc4USp8

Hygienic

Angled surfaces eliminate pooling
Designed to exceed IP69 hygienic
standards

Uniquely designed closures assure
hygienic washdown and IP69 sealing
All connections are sterile or utilize stand
off connections for absolute cleanability

Design

Modular design
Frame segments are standardized
for easy machine growth

Designed to work hard now and in the future

Serviceability

Both cabinets swing out for
easy maintenance
Easy access to each dedicated
cabinet

Reduced life cycle costs with
open source parts

Safety

Every Pinch point and cutting
surface is covered

Removal immediately triggers
system shutdown

Options

Automatic Chain Lubrication
Coding and Printing Devices
Confirmation Station
Conveyors
Customized Form and Sealing
Tooling
Gas Testing Devices
Heavy Product Support

Hole Punch Devices
Labeling Devices
Multiple Cutting Options
Plug Assist
Shrink Application
Tear Notch
Water Chiller

Technical Specifications

Standard Machine Widths

285 / 320 / 355 / 420 / 459 /520 / 560 / 620 / 720 mm

Maximum Index Length

Up to 650 mm / 25.6" with preheating 350 mm max.

Loading Length

1000 – 5000 mm / 39.4" - 197"

Discharge Length

750 – 3750 mm / 29.5" - 147.6"

Draw Depth

100 / 135 / 185 mm (3.9" / 5.3" / 7.3")

Film Roll Diameter

400 mm/15.7" (standard) / 1500 mm/59" (jumbo)

Roll Core

76 mm (3") standard / Adapter for 152 mm (6") available

Power Supply

220/440V – 3 ph – 50/60hz

Compressed Air

Min. 7 bar (103 psi) @ 850 l/min.
