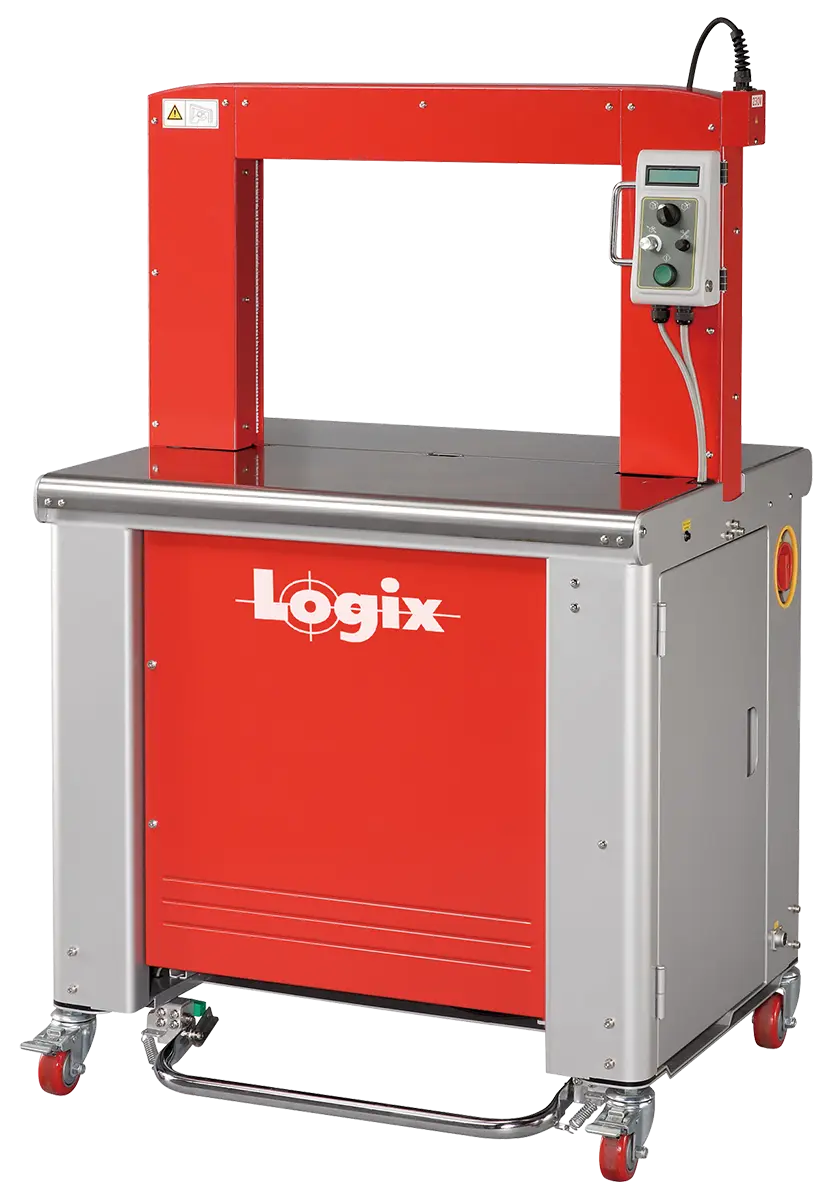

Logix PakStrapper TP-702-59 is an innovative world-class high-speed automatic strapping machine. Equipped with all industry’s standard features and creative user-friendly designs, the Logix PakStrapper TP-702-59 offers the most optimal performance, highest speed, easiest maintenance, and the most cost effective solution in its class. Ideal for strapping compressible material such as corrugated papers, paper sheets, corrugated boxes, plastic sheets, bags and more.
Right tightness. Superior load stability.
Technology to provide the highest level of accuracy and reliability
Robust & compact mechanical strapping head
Free access to strap guides (patents registered)
Sensor controlled heater
Auto strap ejector clears unwanted strap automatically if the machine is accidentally activated without a package
CSA or equivalent special inspection certified for insurance compliance liability

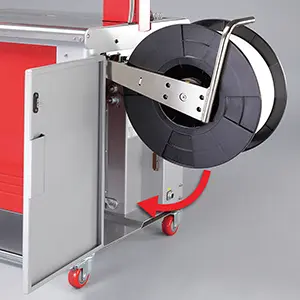

Quick Coil Change (Patents Registered)
Innovative waist-high coil change without access to the bottom of the machine. Quick release lock eliminates downtime to change the coil.

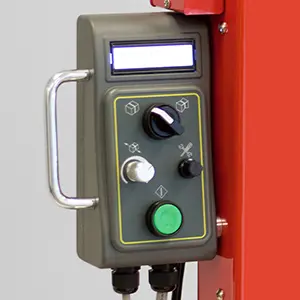

Tension Control & Multilingual LCD Display
Switches adjust strapping tension for optimal package results. Control panel turns to enable operation from front or rear.
Automatic Cycle Start & Delay Time
Automatically initiates the strapping cycle when a package is detected.
Technical Specifications
Capacity
Up to 72 pallets/hour (3 parallel straps)
Strap Type
PP or PET strapping
Strap Width
12 mm, 15.5 mm, or 19 mm
Tension Range
1100 - 3200 N (standard)
200 - 1200 N (optional)
Strap Core Size
406 mm
Pneumatic Source & Air Consumption
6 bar
7.1 liter/cycle
Electrical Requirements
220V, 380V, 400V, 415V 50/60Hz 3PH
Options
Floating Head Index head stroke up to 700 mm Free standing operation desk Light tower with low strap sensor Top press (200 kg or 500 kg) HMI mounted on the opposite side Uplifted support
