This very rugged combination L-Sealer and Tunnel Combo System is suitable for all types of packages. Easy portability allows you to move the unit to where the job is most efficiently run and then out of the way during down time. CSA certification assures you of the highest standards for safety and dependable operation. Available for purchase or rental.
Consistent Quality, Performance, and Reliability in a Flexible L-Seal Design w/Tunnel
Quick film loading system
Height adjustment ensures that the sealing line is in the center of product
Automatic conveyor belt transports the product into tunnel
Micro knife seal system (Teflon coated)
Hot air cycling tunnel with velocity control
Tunnel height adjustable to fit the sealer height
AC variable speed drive with frequency inverter
Digital temperature control
Automatic cool down function

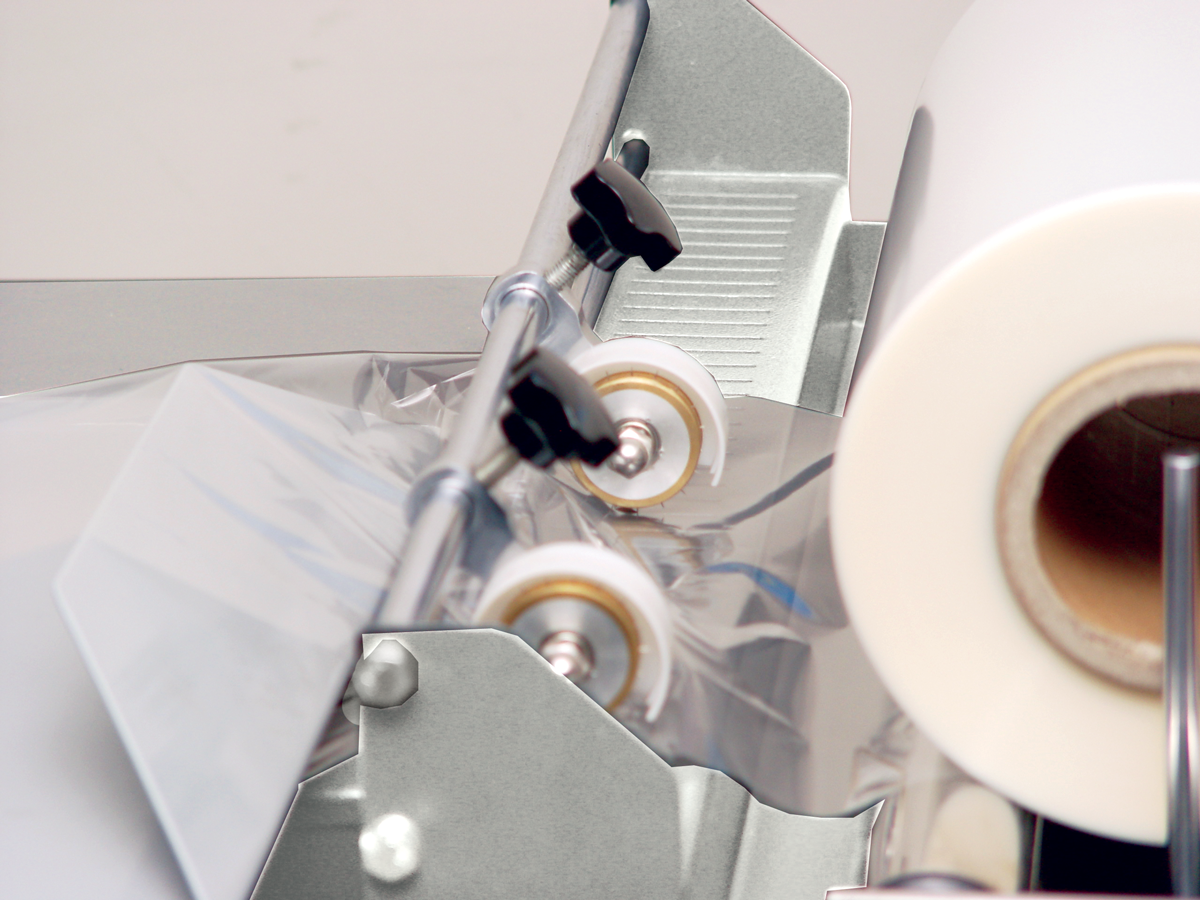

Perforation System

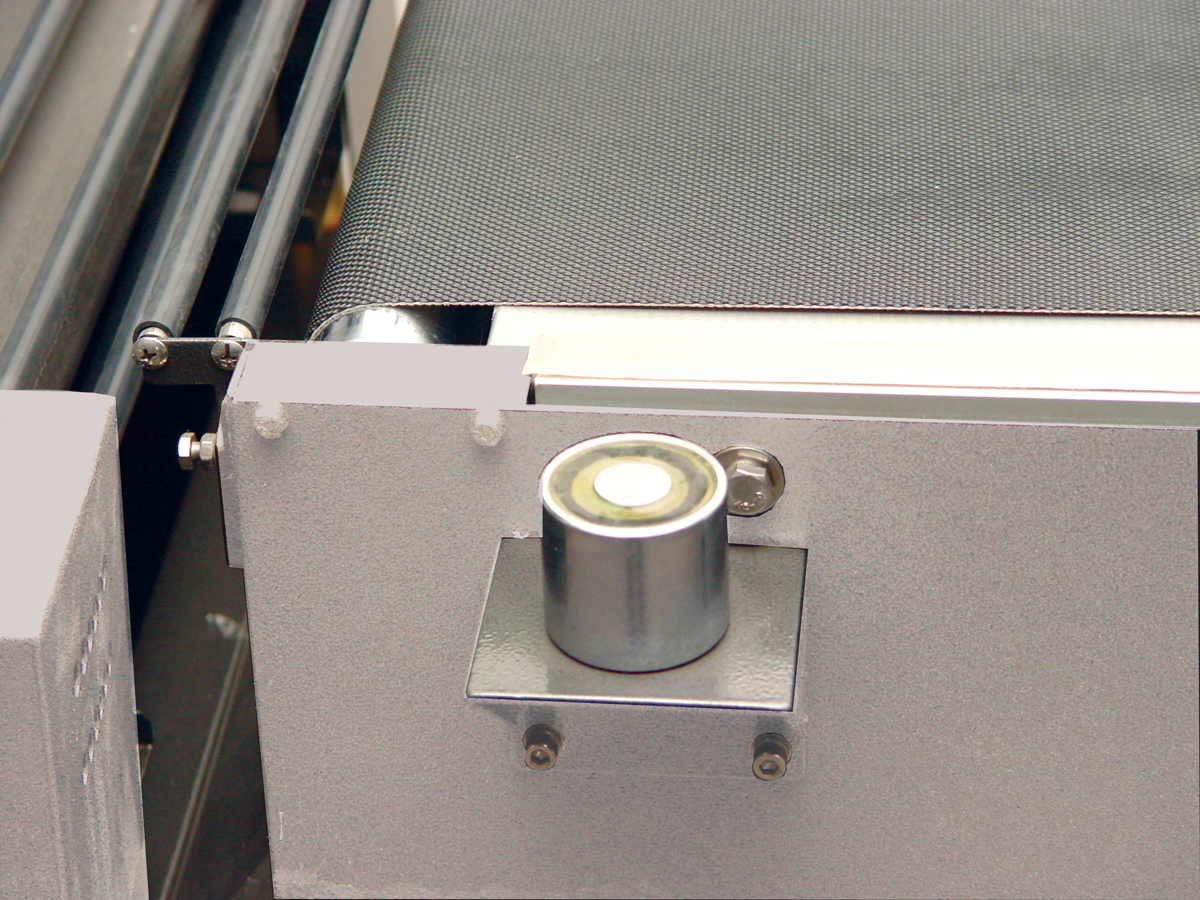

HD Magnets
Control
All Logix equipment is CSA or equivalent special inspection certified for insurance compliance liability.
Technical Specifications
Seal Area
15" x 19"
Max. Film Width
19"
Tunnel Chamber Dim.
16" W x 20" L x 6" H
Speed
Up to 8 – 10 Pkg/Min.
Power
220 Voltage 3 Phase 23 Amp
Machine Dimensions
28" W x 75" L x 53" H
Weight
600 lb
All Logix equipment is CSA or equivalent special inspection certified for insurance compliance liability.
