User-friendly interface
Stainless frame and surfaces
Adjustable forming box
Overview

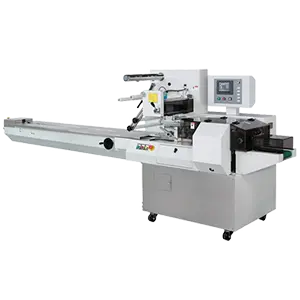

The HFC Series Horizontal Flow Wrapper is made to package a wide range of products in 3-side seal pillow bags. This machine can be equipped with two frequency converter units or with two Servo-motors, depending on the bag size range and the product dimensions. Two versions available: A basic model, with a painted steel frame, with duro-aluminum parts and full Stainless Steel version.
Benefits
Applications
Technical Specifications
Model Widths Upper Reel
220, 300, 350, 450, 600 mm
Model Widths Lower Reel
220, 320, 400 mm
Maximum Bag Width
100-250 mm (differs per model)
Bag Length
80-600 mm
Bag Width
50-180 mm
Product Height
5-60 mm
Film Roll Diameter
300 mm maximum
Packaging Rate
25-230 bags/minute
Packaging Film
OPP,OPP/CPP,KOP/CPP,ALU
Power
220 V, 50/60 Hz, 5.95 KW
Machine Size
Differs per model
Machine Weight
400-930 kg (differs per model)
