One of the major benefits of a DynaCon® conveyor is that it offers you complete flexibility for reconfiguration and repurposing of your conveyor system as the needs of your business change. But there are so many more reasons why DynaCon® modular conveyors are the superior choice when looking for a custom conveyor system.
https://youtu.be/6GfsmkNkgVk

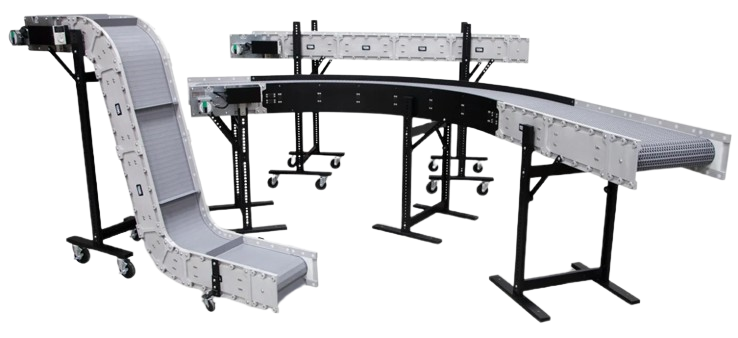

Configurations

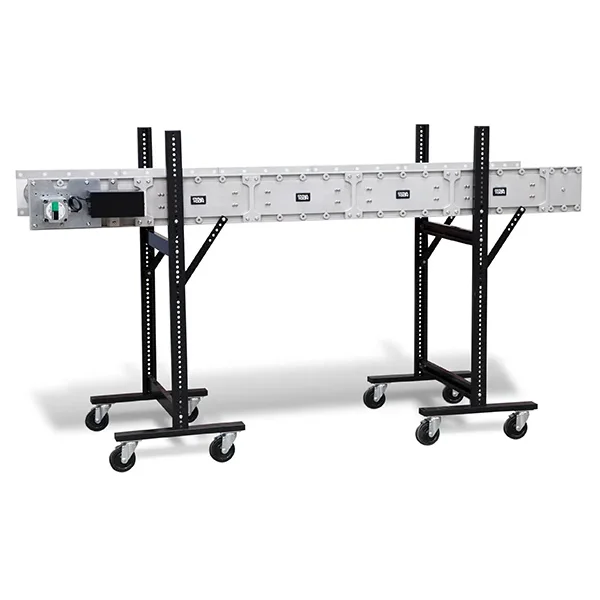

Flat Conveyors
Flat conveyors meet the needs of a wide variety of applications and integrate seamlessly with other Dynamic Conveyor lines. Easy to lengthen, shorten, add an angle, or reconfigure on the fly with its modular design.

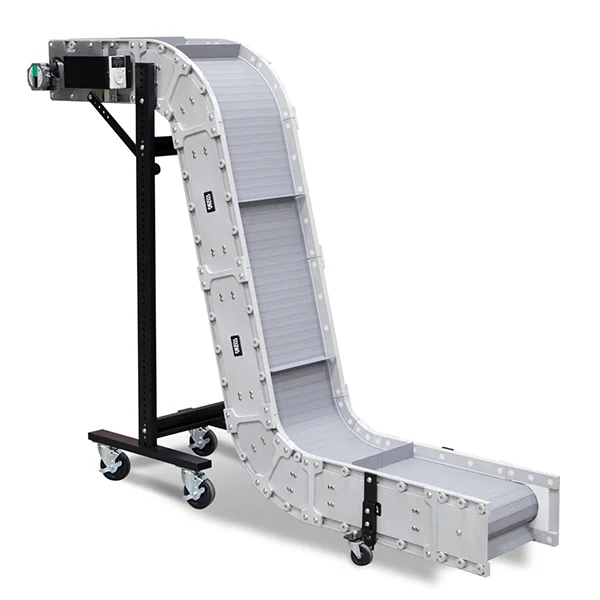

Z-style Incline Conveyors
Z-style incline conveyors can be designed and built using angles ranging from 30o to 90o, creating just the right configuration to get your product where it needs to be.

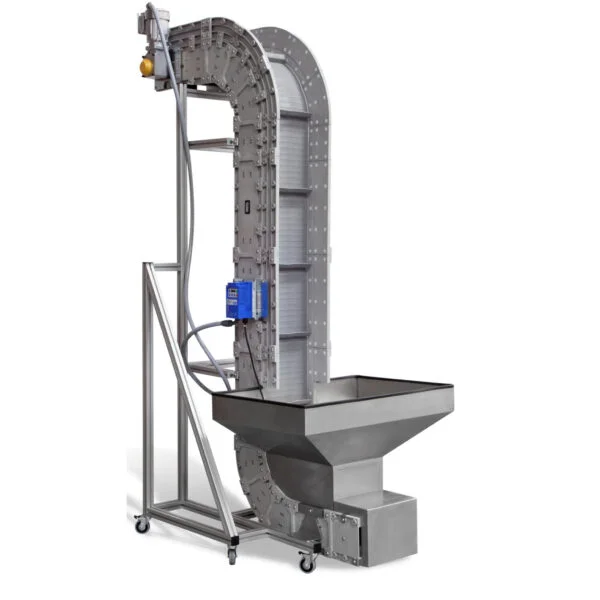

Vertical Conveyors
Vertical conveyors give you the ultimate ability to work within small footprints, optimizing floorspace and efficiently conveying product to its final destination. They also make an ideal replacement for bucket elevators.
Technical Specifications
Width
1" – 72" usable belt
Length
Up To 100'
Speed
Variable Speed Up To 75' Per Minute
Support
Extruded Aluminum With Or Without Locking Casters Ceiling Hung
Belting
Link style modular belting with wide range of options/configurations to meet application needs.
