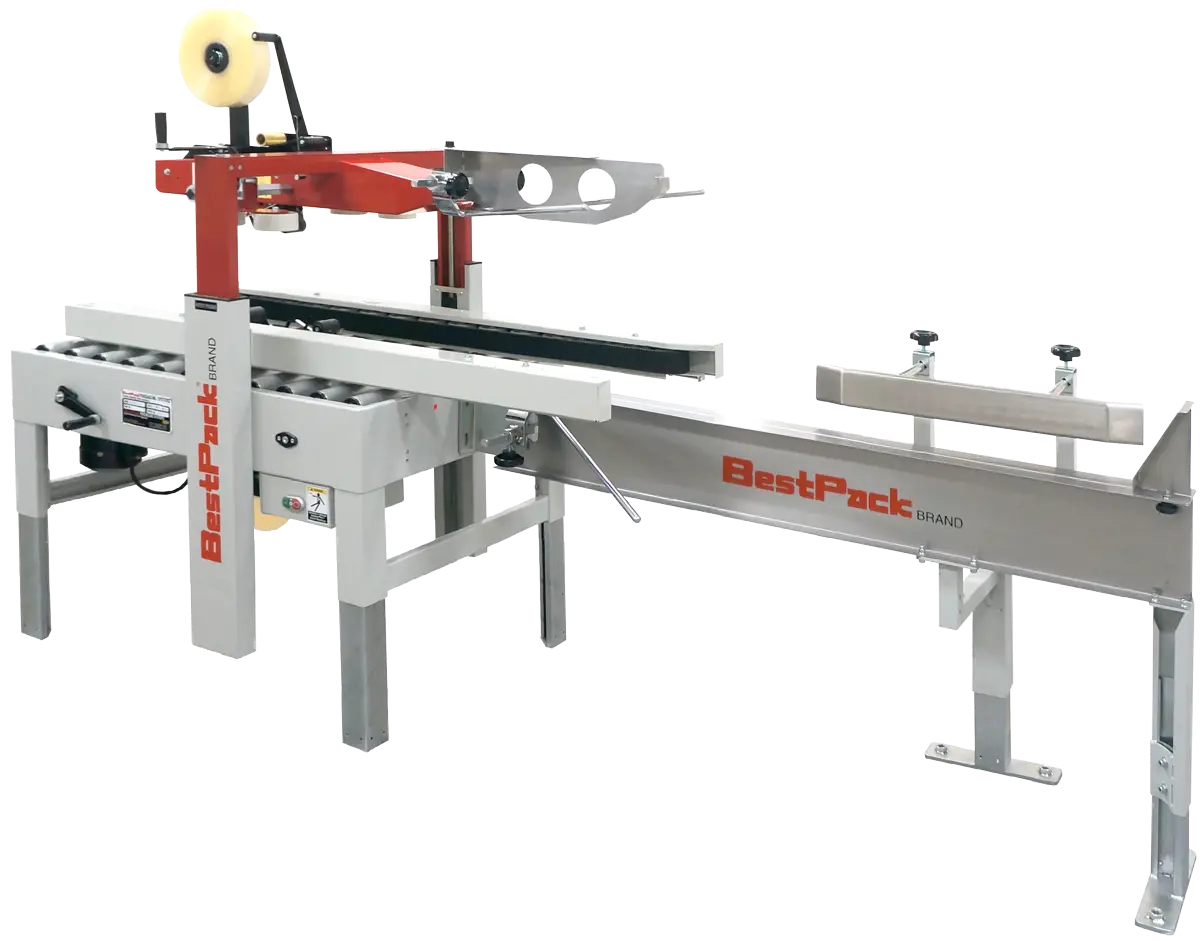

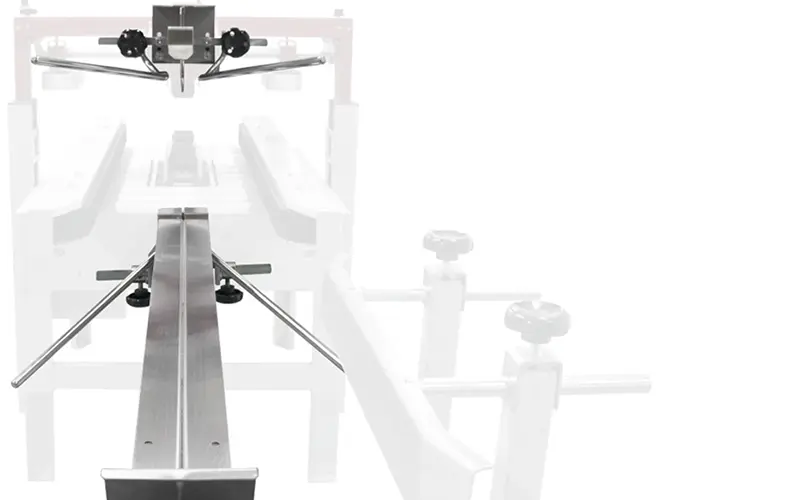

The BestPack™ MSDBF sealer is a unique multi-purpose machine. Featuring a convenient top 3-flap folder and bottom T-rail leading to an extended side-drive system, the MSDBF enables a person to efficiently erect, pack, flap fold, and seal a carton in one station. Dual telescopic masts allow for an extra 4" carton height extension on the upper assembly and two 110V UL-approved electric motors power the extended side belt drive.
https://www.youtube.com/watch?v=FA7ffE8I0QI
Side Belt Technology
Designed for light-to-heavy duty uniform carton closure applications.

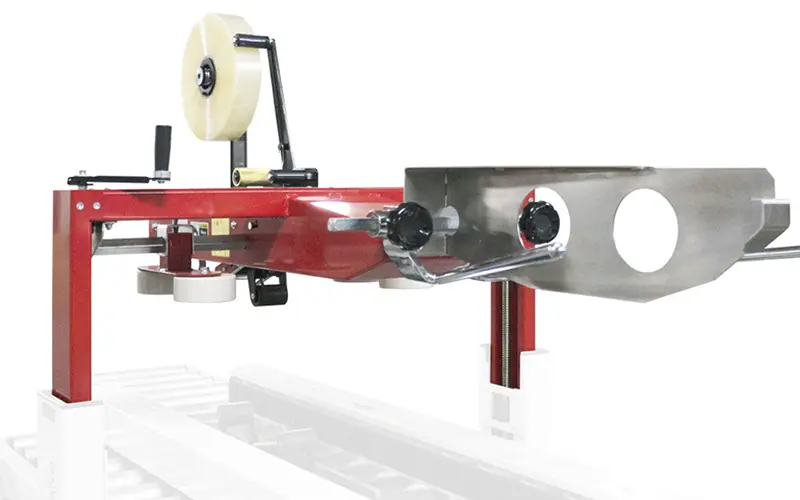

Uniform Top & Bottom Flap Folder

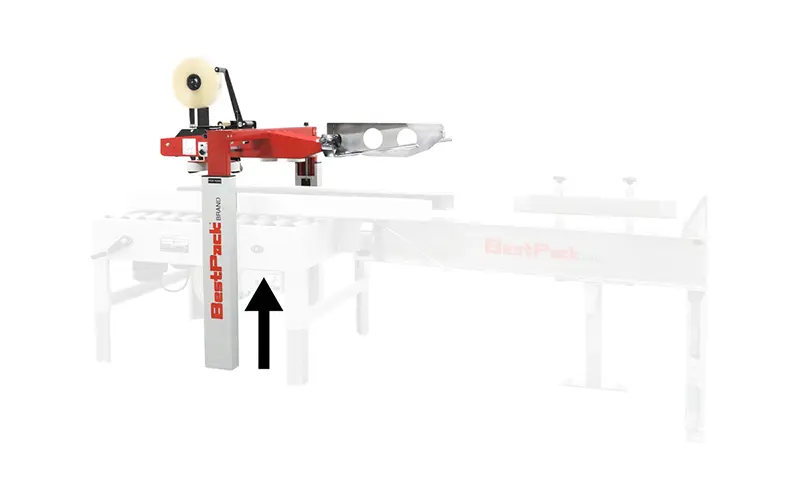

Telescopic Mast Design
Extra 4" carton height adjustment Available on upper assembly
Technical Specifications
Speed
Up to 15 Cartons/Min.
Power Requirements
110 Volts 60 Hz
Air Requirements
None
Shipping Weight
460-648 lbs
Machine Dimensions
(99.6") x (32.8") x (70.3")
Carton Range
(7.8" - 23.6") x (7.8" - 19.6") x (4.0" - 19.6")
Conveyor Height and Adjustment
(23.5" - 30")
Tape Roll Lengths
1,000 yd., 1,500yd., 2,000yd
All BestPack units are available in our standard baked enamel finish and food grade 304 stainless steel for 21 CFR 110 compliance.
