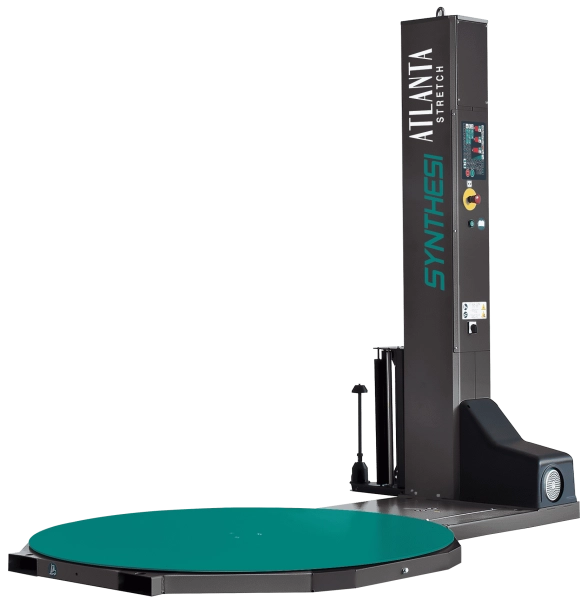

Atlanta Synthesi Main Photo

Atlanta Synthesi

Low Profile Semi-Automatic
Stretch Wrapper

20 Loads/Hour

4410 lbs Load Weight


Optional diameters: 1650 / 1800
2200 / 2400 / 2600 mm

Overview

SYNTHESI is an economical and easy to operate stretch wrapping machine, which is equipped with a film carriage FM / FE and OPRS. Enables you to own a POWER PRESTRETCH machine for an affordable price. This model has a high demand by those users wrapping limited pallets per day, and still interested in achieving low cost of ownership. SYNTHESI answers those needs. Already supplied as a fully equipped machine, many options are available for installation, in order to make this machine become your best partner in logistics.

https://youtu.be/nmCOs8UCI88

Best Value Money, available with 6 options

Easy to operate. Adjustable tension. Pre-stretch in evey step of the wrapping cycle.

Friendly-user operating panel image

Friendly-user operating panel

  • 11" Touch screen
  • 6 Programs
  • Multifunction programmable control panel
Spool film carriage image

Spool film carriage

  • Adjustable spool carriage speed facilitated by inverter
  • From 1,3 upto 5,4 m/min
Synthesi Turntable Image

Easy Loading Film Carriage

  • 2200 / 2500 / 2700 / 3200 / 3500 mm
  • Standard or extended ramp

OPTIONS

  • D184931 STRETCH WRAPPER ATLANTA SYNTHESI PRS (8'H - 59"D) 0005.00197
  • D184935 RAMP STANDARD ATLANTA SYNTHESI 0098.00011
  • D184936 RAMP EXTENDED REINFORCED SYNTHESI (For electric Pallet truck)
  • D184937 PHOTOCELL BLACK PRODUCT SYNTHESI 0098.50020
  • D184938 PHOTOCELL LASER TRANSPARENT PRODUCTS SYNTHESI 0098.50360
  • D184939 AUTOMATIC FILM CUTTING (CYCLEEND) 0098.00878

Technical Specifications

Production Capacity

20 loads per hour

Maximum Load Weight

4100 lbs

Frame Type

Low profile

Standard Wrapping Height

2450 mm

Optionnal Wrapping Height

2200 / 2500 / 2700 / 3200 / 3500 mm

Turntable Diameter

1500 mm

Optionnal Turntable Diameter

1650 / 1800 / 2200 / 2400 / 2600 mm

Adjustable turntable rotation speed facilitated by frequency inverter

From 5 to 12 rpm

Recommended thickness for stretch film

From 10 to 23 µm

Standard voltage

230 V - 50/60 Hz – 1 Ph
