15-100 Pallets/Day
5-12 RPM
47.2" x 47.2" x 86.6" Load Size
Overview

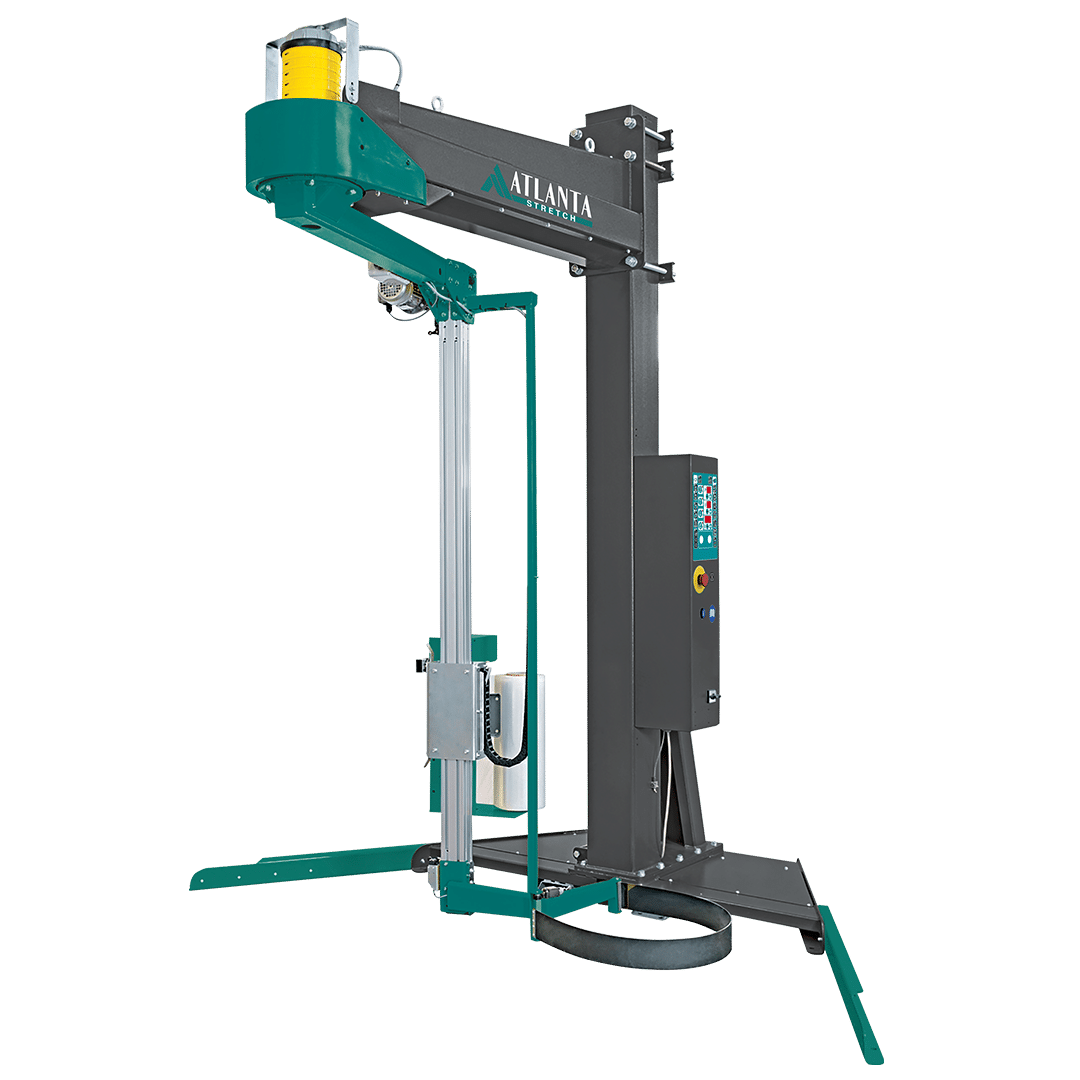

This machine comes standard with up to 99 programmable settings and a mechanical brake system. It supports FE, PRS, or PS Power Pre‑Stretch film carriages, all of which can be easily upgraded or retrofitted as your needs evolve. Designed to handle a wide range of pallet sizes and heights, it also offers flexibility to add optional features and advanced functions through the standard operating panel. Unlike many competing systems, the rotary arm is gear‑driven rather than chain‑driven, resulting in a more rigid construction with reduced wear and minimal kickback. A shock sensor integrated into the rotary arm provides added protection by automatically detecting obstacles, reducing the risk of accidental impacts and enhancing operator safety. This ensures long‑term reliability and smoother operation. Engineered for professional environments, this model is well suited for facilities wrapping 15 to 100 pallets per day, delivering consistent performance and efficiency.
The Lybra system is perfect for any wrapping application
Technical Specifications
Production Capacity
From 15 to 100 pallets per day
Wrapping Speed
5 to 12 RPM adjustable
Standard Load Size
47.2" x 47.2" x 86.6"
Standard Film Width
20"
Standard Pre-Stretch
200%
Control System
7'' colour touch HMI display
Enclosure
NEMA 12, cUL
Standard Electrical Requirements
230 VAC / 1 PH / 60 HZ
Warranty
3 Year warranty
