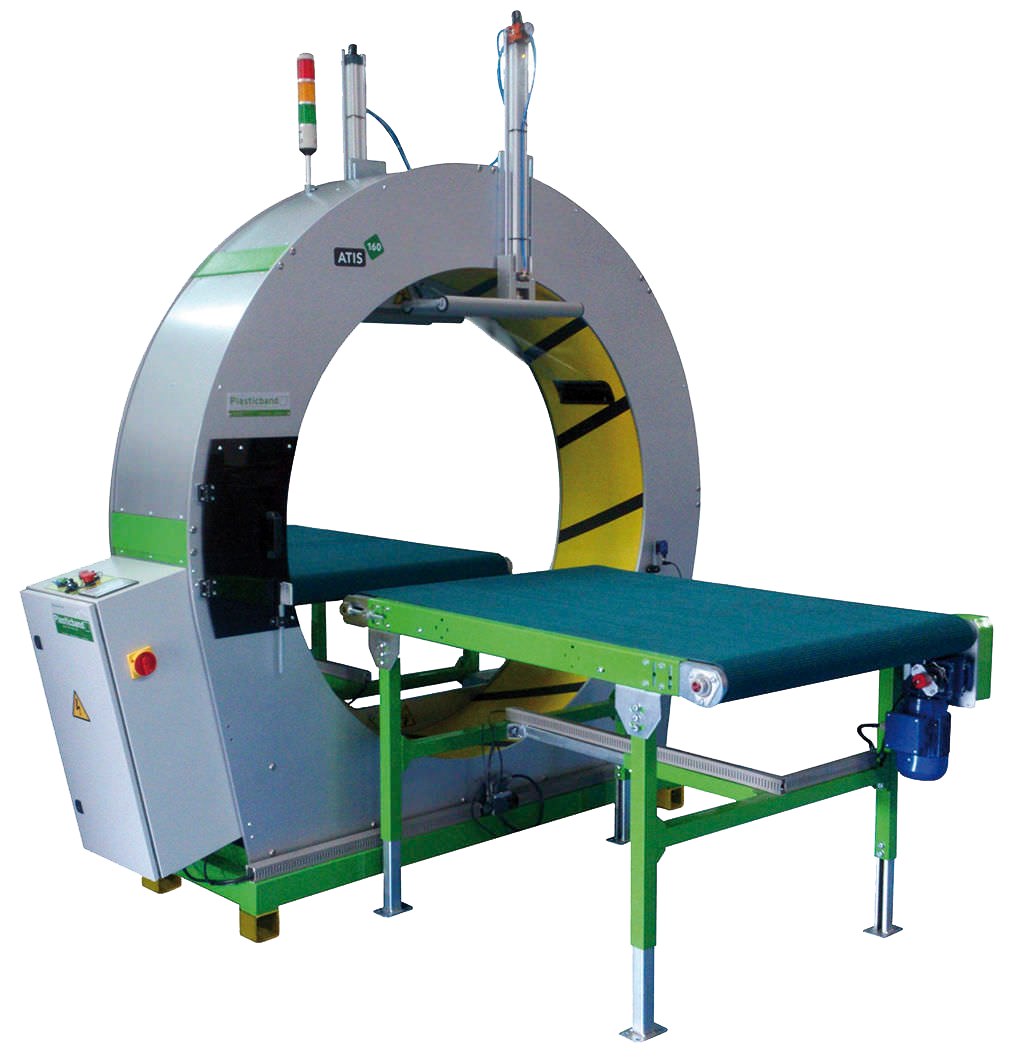

The flexibility of the Atis 160 permits wrapping products of several lengths, diameters and shapes without any adjustment. The Atis 160 wrapper in your facility will increase productivity and save on labour. Let us show you how! Our specialists will help you determine which machine is the most suitable for your business.
https://youtu.be/I5QbZJ7haow
Stretch Wrapping Applications
https://youtu.be/OLe8UAtzqlE
https://youtu.be/UcFyFWyOztA
https://youtu.be/87ktVbe2VOY
Technical Specifications
Double film reel dispenser head
Yes
Adjustable stretch film tension
Yes
Self-blocking reel system
Yes
Automatic stretch film threading
Yes
Adjustable film reinforcement laps
Yes
Double automatic film cutter
Yes
Photocell to start automatic cycle
Yes
Touch screen to adjust parameters
Yes
Wrapping programs & film bundling
Yes
Variable ring rotation speed
60 rpm
Variable conveyors speed
12 mts / min.
Gravity roller conveyors
1000 x 1000 mm
Inverter / PLC
Fuji / Omron
Power supply
230/400 V III+N
Engine / Power consumption
1.84 Kw, 1.63 Kw
Optional
Top presses
Bubble wrap reel automatic dispenser
Reel Dimensions
23 µ (a), 100, 170, 250 mm (b), 230 mm (c), 38 mm (d)
