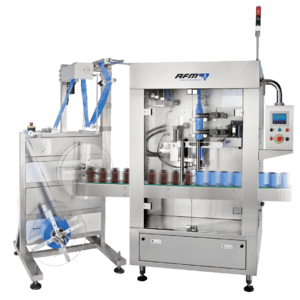

The LX-350 Shrink Sleeve Label and Tamper Evident Band applicator is a premium range labeling machine designed for middle, full body, and full body and cap applications. It is designed for high volume production rates and is a perfect solution for industries including food and beverage, pharmaceutical, nutraceutical, health and beauty, consumer goods, chemical, and other manufactured goods. Due to the versatility of the system, the LX-350 is also ideal for the changing needs of contract packagers.
https://youtu.be/r8hFRb5m-UI
The LX-350 is designed for high-performance shrink labeling
Rugged design. Maximum uptime. Lower cost of ownership.
Designed for 24 hour operation
Constructed of 304 grade stainless steel and anodized aluminum
Engineered to handle oval and round containers made of plastic, glass, or metal at speeds up to 500 cpm
Innovative standard dual unwind system allows users to maximize production
Product runs are programmed with a user-friendly touch-screen
Optional mandrels for non-cylindrical containers are available
Smooth and Even Film Cutting
The multiple-blade rotational cutting mechanism provides smooth and even cutting at high speeds.
In-line Single-Head Mandrel
The bullet style mandrel is ideal for oval and round containers made of plastic, glass, or metal.
Dual Roll Unwind System
Standard dual roll film unwind and tension control systems maintain optimal in-feed tension needed for high speed operations.
Technical Specifications
Power
3 Phase 220/380/400/440V 50/60Hz
Film Thickness
0.035mm - 0.07mm
Film Lay Flat
50mm - 240mm*
Cut Length
40mm - 300mm*
Machine Dimensions
1275mm (W) x 1250mm (L) x 2111mm (H)* 50.2" (W) x 49.2" (L) x 83.1" (H)*
Speed
50 - 500 CPM * XL models available to accommodate wider film lay flat and longer cut lengths.
